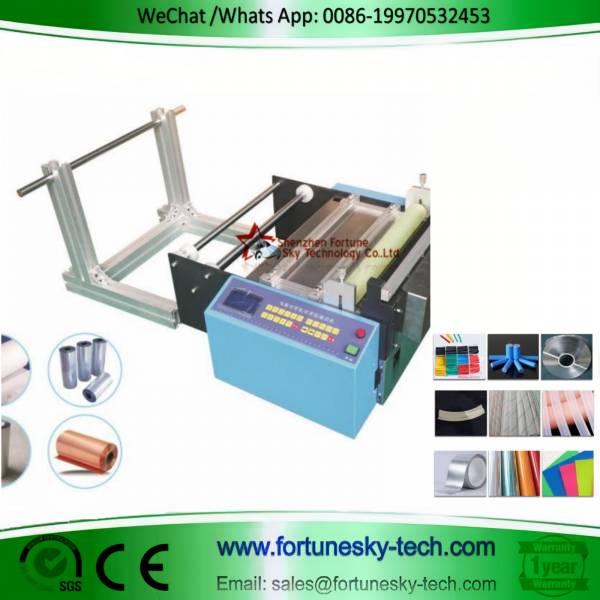

Automatic Aluminum Foil Cutting Machine

The HZX Series: Automatic Foil and Film Cutting Machines - Effortlessly Cut Sheets to Your Exact Needs

The HZX Series Automatic Foil and Film Cutting Machines introduce a revolution in cutting efficiency for  aluminum and copper foil, non-woven fabrics,  wallpaper, PVC film, PE film, and more.

Effortless Operation, Exceptional Results:

Versatile Material Handling: Effortlessly cut a wide range of materials, including aluminum and copper foil, non-woven fabrics, wallpaper, PVC film, PE film, and reflective film.

Precise Sheet Cutting: Simply set your desired cutting length, and the machine delivers fast, accurate cuts every single time. Experience cutting speeds of up to 100 sheets per minute (at 50mm cutting length).

User-Friendly Design: The intuitive interface simplifies operation, allowing for easy setting of cutting lengths.

Technical Specifications:

Model No. Cutting Tool Cutting Width (mm) Cutting Length (mm) Precision (mm) Cutting Thickness (mm) Speed (pcs/min) Weight (Kg)

HZX-400 Upper and Lower Blade 1-360 0-9999.9 0.1 0.5 100 345

HZX-500 Upper and Lower Blade 1-460 0-9999.9 0.1 0.5 100 75

HZX-600 Upper and Lower Blade 1-560 0-9999.9 0.1 0.7 100 83

HZX-700 Upper and Lower Blade 1-660 0-9999.9 0.1 0.8 100 92

The HZX Series: Automatic Foil and Film Cutting Machines - Effortlessly Cut Sheets to Your Exact Needs

The HZX Series Automatic Foil and Film Cutting Machines  introduce a revolution in cutting efficiency for  aluminum and copper foil, non-woven fabrics,  wallpaper, PVC film, PE film, and more.

Effortless Operation, Exceptional Results:

Versatile Material Handling: Effortlessly cut a wide range of materials, including aluminum and copper foil, non-woven fabrics, wallpaper, PVC film, PE film, and reflective film.

Precise Sheet Cutting: Simply set your desired cutting length, and the machine delivers fast, accurate cuts every single time. Experience cutting speeds of up to 100 sheets per minute (at 50mm cutting length).

User-Friendly Design: The intuitive interface simplifies operation, allowing for easy setting of cutting lengths.

Technical Specifications:

Model No. Cutting Tool Cutting Width (mm) Cutting Length (mm) Precision (mm) Cutting Thickness (mm) Speed (pcs/min) Weight (Kg)

HZX-400 Upper and Lower Blade 1-360 0-9999.9 0.1 0.5 100 345

HZX-500 Upper and Lower Blade 1-460 0-9999.9 0.1 0.5 100 75

HZX-600 Upper and Lower Blade 1-560 0-9999.9 0.1 0.7 100 83

HZX-700 Upper and Lower Blade 1-660 0-9999.9 0.1 0.8 100 92

Additional Information:

Decoiler (uncoiler) is not included with the machine but a free aluminum alloyed decoiler with a payload capacity of 10-15KG is provided.

The HZX Series Automatic Foil and Film Cutting Machines  are perfect solutions for businesses seeking to  streamline and elevate their cutting processes for  various foil and film materials.  Their versatility, precision, and user-friendly  design make them valuable assets for any production line.
