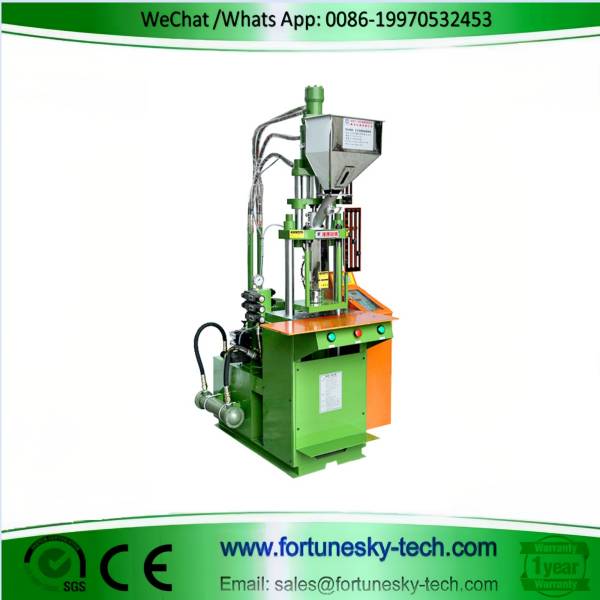

JY-160S2 Plastic Injection Molding Machine

Unleash Peak Efficiency with the Advanced JY-Series Plastic Injection Molding Machine

The JY-Series Plastic Injection Molding Machine redefines efficiency in plastic product manufacturing.  This feature-rich machine delivers exceptional performance  for a wide range of applications,  including plugs, stationery, toys, LED lights,  cellphone shells, and various daily necessities.

Key Advantages:

Quiet Operation: Experience a more comfortable work environment with the machine's low noise operation.

Stable Pressure Control: Ensure consistent and high-quality results with the machine's precise and stable pressure control system.

Energy-Saving Design: Minimize energy consumption with the machine's efficient power-saving features.

Broad Application Range: This versatile machine is suitable for manufacturing a diverse range of plastic products.

Functional Highlights:

Straight Screw Type Ejection Device: Enables efficient and reliable part ejection.

Two (Three) Phase Temperature Control: Provides precise control over various molding stages for optimal product quality.

Stepless Adjustments: Fine-tune ejection speed, back pressure, and screw speed for a variety of precision molding tasks.

Bottom Mold Fixed, Upper Mold Moving Design: Well-suited for embedded plastic injection molding.

Low-Pressure Opening Mold Device: Protects molds from damage during opening.

Technical Specifications:

Feature Model JY-160S2 JY-200S2

Injection Unit

Screw Diameter (mm)  26 28

Injection Pressure (kg/cm³)  1183 1019

Theoretical Shot Volume (cm³)  55.7 64.6

Max. Shot Weight (PS) (g)  950 867

Safe Shot Weight (PS) (g)  717 677

Max. Shot Weight (PS) (cm³/sec)  34.6 40.7

Injection Rate (mm/sec)  105 105

Screw Speed Max (rpm)  0-215 0-200

Nozzle Contact Force (Tons)

Nozzle Retraction Stroke (mm)

Number of Temperature Control Zones  2 2

Feature Model JY-160S2 JY-200S2

Clamping Unit

Clamping Force (Tons)  15 30

Platen Size (mm)  450 x 280 480 x 310

Distance Between Tie Bars (mm)  265 295

Min. Mold Height (mm)  100/25 100/30

Opening Stroke (mm)  190 180

Max. Open Daylight (mm)  290/215 280/210

Ejector Force (Tons)  1.3 1.3

Ejector Stroke (mm)  35 35

Feature Model JY-160S2 JY-200S2

Power/Heating Unit

Max. Hydraulic Pressure (kg/cm³)  140 140

Pump Output (L/min)  17.5 29.5

Oil Reservoir Capacity (L)  180 100

Cooling Water Consumption (L/hr)  400-600 400-600

Pump Motor Power (kW/HP)  2.2/3HP 3.75/5HP

Barrel Heating Power (kW)  1.8 1.8

Total Weight (kW)  4.2 5.5
