Cable Coiling Machine

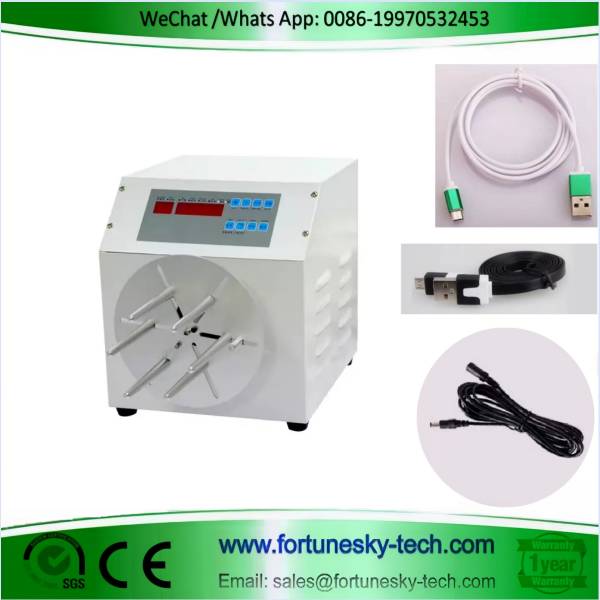

Streamline Your Cable Production with the HWN-400W Automated Cable Coiling Machine

The HWN-400W Automated Cable Coiling Machine represents a revolutionary advancement in cable coiling  technology, designed to  significantly improve your production efficiency.

Key Advantages:

Intuitive User Interface: The advanced LCD display with backlight mirrors the operation style of modern mobile phones, replacing outdated and tedious digital tube interfaces for a user-friendly and efficient experience.

Enhanced Reliability: The meticulously designed industrial protection circuit ensures trouble-free operation for over 20,000 hours, minimizing downtime and maintenance needs.

Secure Data Management: The machine offers exceptional data protection functions, safeguarding your set parameters and preventing accidental loss.

Advanced Winding Control: This machine provides the ability to set different winding directions for various sections, along with positive and negative counting functions for precise control over the coiling process.

Variable Speed Control with Low Noise: Set independent winding speeds for different sections, all while maintaining exceptionally low noise levels. The machine also offers high-efficiency operation with constant torque, fast starts, high speeds, and direct high-speed braking. For thin wires, specific 0-9 slow start modes are available to prevent tension during startup, and these modes can be customized for each section.

Technical Specifications:

Model No.: HWN-400W

Power: 400W

Power Source: 220v-50Hz

Wire Coiling Disc Diameter: 300mm

Maximum Number of Winding Bars: 6

Winding Fixture Compatibility: Yes

Number of Circles Programmable

Adjustable Rotation Speed

Output Calculation Function

Brake Type: Fixed Brake

Wire Cable Shape After Coiling: Circle or “8” Shaped

Clockwise/Anticlockwise Rotation Selectable

Winding Diameter and Length: 5mm diameter wire up to 100 meters

Dimensions: 340 x 280 x 240 mm

Weight: 20 kg

The HWN-400W Automated Cable Coiling Machine is a perfect solution for businesses  seeking to optimize their cable production processes.  Its intuitive interface, exceptional reliability,  advanced winding control, variable speed with low noise,  and overall efficiency make it a valuable asset  for any production line.
