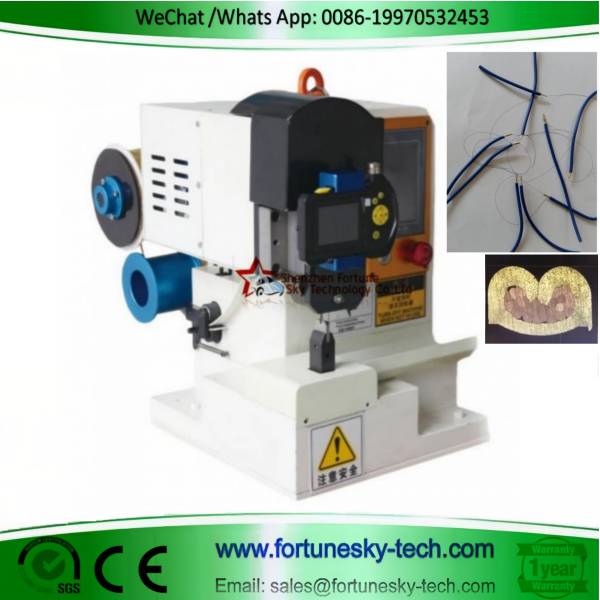

LBK9S 2T Servo Wire Splicing Machine

Introducing the Next Generation of Wire Splicing Technology: The Advanced Servo Wire Splicing Machine

This innovative Servo Wire Splicing Machine represents a significant advancement in professional connector crimping  for high-end, precision wires.  It surpasses traditional soldering methods by offering several  distinctive advantages.

Key Features:

Clean and Efficient Splice Band Crimping: Eliminate cold solder and air pollution associated with soldering with this clean and efficient crimping method.

User-Friendly Design: The machine prioritizes humanization with an intuitive design for effortless operation.

Automated Processing: The patented automatic conveyor with continuous copper terminal enables single-step processing, integrating cutting, shaping, and crimping without generating waste and minimizing costs.

Customizable Molds for Precise Connections: Molds are specifically tailored to wire size and splice band specifications, ensuring optimal crimping performance for various applications.

Exceptional Splice Strength: The specially processed splice band, combined with the riveting process, delivers exceptional tensile strength for long-lasting and reliable wire connections.

Advanced Servo Control System:

1.0 kW Servo Motor for Powerful Operation

Touch Screen Control for Intuitive Debugging

Adjustable Parameters:

Terminal Splice Height

Terminal Pressing Power

Terminal Pressing Time

Equipment Pressure Testing

Stepper Drive Feed Control

90% Vertical Operation for Ergonomic Use

Monitor Control Pressure Contact (customizable)

Copper Band Width Options:

2 mm: Ideal for high-precision, low-current products in electronics and general applications.

4 mm: The common standard for various applications.

6 mm: Designed for high-current products like power connections, requiring exceptional tensile strength.

Technical Specifications:

Splice Force: 2.0 Ton (Adjustable)

Splice Time: 0.01 Seconds (Adjustable Hold Time)

Stop Splice Machine: Adjustable

Motor Rating: 0.75 kW Servo Motor

Power Supply: AC220/50Hz

Wire Diameter: AWG24# - AWG10#

Feeding Length Parameters: 1mm - 99.9mm

Copper Width: 1.0-6.0mm

Splice Precision: 0.1-0.2 (±0.05mm)

Dimensions: 340 x 360 x 450 mm

Crimp Pull Power: Within 15 Kg

Weight: 65 Kg

Driving Method: Servo Motor, Stepping Feeding

The Advanced Servo Wire Splicing Machine is a perfect solution for businesses  seeking to elevate their wire processing operations.  Its clean and efficient crimping method,  customizable features, exceptional splice strength,  advanced servo control system, and user-friendly  design make it a valuable asset for any environment  demanding high-precision wire connections.
