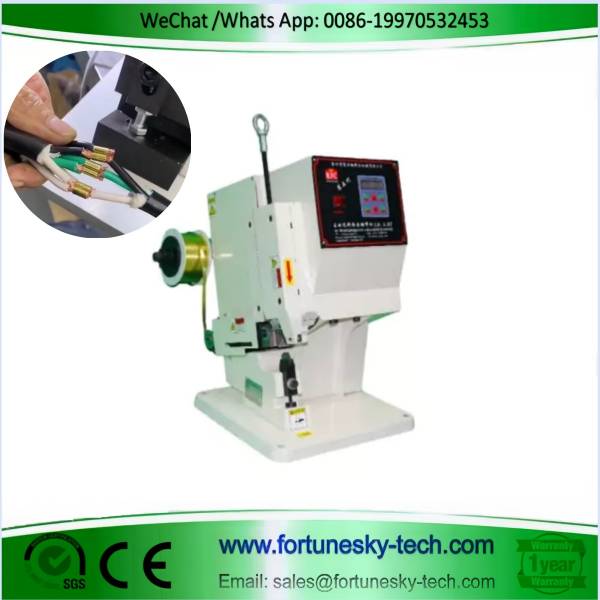

LB-4.0T Wire Splice Band Machine

Unleash Next-Level Wire Splicing Efficiency with the LB-4.0T

The LB-4.0T Wire Splice Band Machine revolutionizes wire connections,  offering a superior alternative to traditional soldering methods.  This feature-rich machine delivers faster, cleaner,  and more reliable wire splicing for various applications.

Key Advantages:

Enhanced Safety and Quiet Operation: The LB-4.0T prioritizes safety with CE certification and quieter operation for a more comfortable work environment.

User-Friendly Design: The intuitive button screen interface simplifies operation, making it easy for users of all skill levels to achieve optimal results.

Precise Wire Handling: The unique rubber wheel feeding system ensures accurate wire movement, minimizing insulation damage and promoting consistent, high-quality connections.

Superior Riveting Strength: The innovative mold design, combined with specially processed copper belt, delivers exceptional riveting strength for long-lasting and dependable wire connections.

Environmentally Friendly: This method eliminates cold solder and air pollution, contributing to a cleaner and healthier work environment.

Faster, More Efficient Processing: The LB-4.0T integrates cutting, shaping, and crimping processes into a single operation, reducing processing time and boosting production efficiency.

Cost-Effective Solution: By utilizing continuous copper belt terminals, this machine minimizes waste and eliminates the need for purchasing separate cutting and shaping tools.

Versatility for Diverse Applications: The LB-4.0T handles a wide range of wire diameters (4.0mm-12.0mm), making it suitable for various applications including heavy gauge wires, USB cables, automotive harnesses, monitor cables, and more. Additionally, customizable non-standard molds can be used to accommodate specific needs.

Technical Specifications:

Model No.: LB-4.0T

Display Mode: Button Screen

Form Factor: 460 x 320 x 460 mm

Press Relay: 4.0 Ton

Wire Diameter: 4.0mm - 12.0mm

Working Power Supply: AC220V 50Hz

Motor Power: 1.1 kW

Limit Operating Voltage: 220V-246V

Rated Current for Normal Operation: 6A-10A

Average Power Consumption: 0.02 kW

Crimping Copper Buckle Tolerance: +/- 0.1 mm

Weight: 55 Kg

Applicable Wires: Heavy gauge wire, USB cable, Automotive medical wire harness, wiring harness, monitor cable, plane wire, train wire, etc.

The LB-4.0T Wire Splice Band Machine is a perfect solution for businesses  seeking to elevate their wire splicing operations.  Its exceptional features, efficiency, versatility,  and safety standards make it a valuable asset  for any production line.
