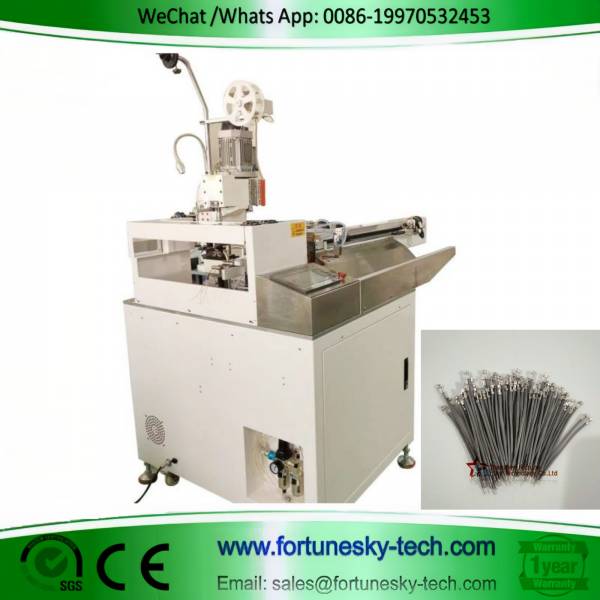

Fully Automatic 5-Wire Multi Cut Strip Twist Tin Crimping Machine

Introducing the Ultimate Wire Processing Powerhouse: The Automatic Crimping Machine

This high-performance Automatic Crimping Machine revolutionizes your wire termination process,  integrating cutting, stripping, twisting, and tinning into a single,  efficient operation for up to 5 wires simultaneously.

Key Advantages:

Unmatched Multi-Wire Processing: Manage five wires at once, significantly boosting production output and reducing labor costs.

All-in-One Functionality: Cut, strip, twist, and tin wires in a single streamlined operation, minimizing processing time.

Exceptional Precision Control: Advanced servo control and high-quality components (Huichuan servo motors and Yadeke pneumatic cylinders) ensure consistent, reliable results on every wire processed.

Versatile Wire Compatibility: Handles a wide range of wire types and sizes (AWG16-AWG30).

User-Friendly Operation: The intuitive touchscreen interface with an English operating menu facilitates easy operation for workers of all skill levels.

Simplified Maintenance: Fast and efficient process and material changeovers combined with user-friendly maintenance procedures minimize downtime and maximize productivity.

Technical Specifications:

Model Name (for reference): Not provided

Functions: Wire cutting, single-end stripping, double-end stripping, single-end terminal crimping, single-end twist, single-end tin coating (optional)

Cutting Length: 35mm-650mm

Cutting Accuracy: 0.2+/-0.02L

Stripping Length: Front End: 1-6mm, Back End: 1mm-10mm

Wire Diameter: 1mm-3.5mm

Tin Coating Length: 1mm-10mm

Twist Length: 2mm-10mm

Common Wire Diameter: AWG16-AWG30

Crimping Force: 2.0 Ton

Working Efficiency:

Cutting Length 100mm: 5500 pieces/hour

Cutting Length 200mm: 4600 pieces/hour

Air Pressure: 0.5-0.7 MPa

Detection Devices: Terminal crimping detection, missing wire detection

Tool Material: High-speed steel

Dimensions: 180 x 98 x 160 cm (standard machine)

Net Weight: 290 Kg

Auxiliary Device: Terminal waste paper collection device

Power Supply: AC220V Single-Phase 8A (customizable)

The Automatic Crimping Machine is a perfect solution for businesses seeking  to revolutionize their wire processing operations.  Its exceptional efficiency, multi-functionality,  precision control, user-friendly design,  and versatility make it a valuable asset for any  high-volume production environment.
