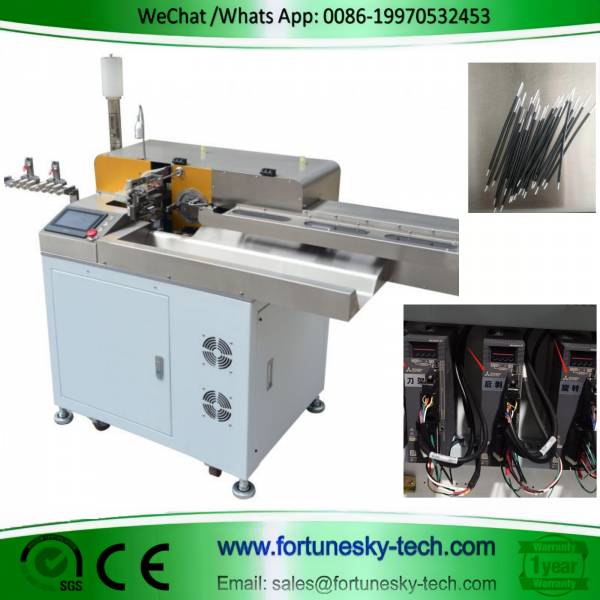

Automatic Wire Multi Cut Strip Twist Both-Ends Tinning Machine

Unleash Peak Wire Processing Efficiency: The All-New Automatic 10-Wire Tinning Machine

Introducing the next generation of wire processing technology: the Automatic Multi-Function Tinning Machine. This innovative machine processes up to 10 wires simultaneously (AWG26 to AWG32),  performing cutting, stripping, twisting, and tinning  in a single, streamlined operation.

Key Features:

Unmatched Multi-Wire Processing: Effortlessly manage ten wires at once, significantly boosting production output.

Versatile Functionality: Integrates cutting, stripping (single or double-ended), twisting (single or double-ended), and precise tinning for exceptional adaptability to diverse processing needs.

Exceptional Efficiency: Achieve impressive production rates of 16,000-22,000 pieces per hour, depending on wire specifications and cutting length.

User-Friendly Design:

Compact footprint minimizes space requirements.

Intuitive digital touchscreen with a Chinese interface facilitates easy operation and reduces training time.

Stores up to 100 processing procedures for quick setup changes.

Advanced Technology:

High-speed DSP distributed control system ensures precise and rapid processing.

Silent hybrid servo drive minimizes noise levels.

Automated features like blade positioning and twisting mechanism reset enhance ease of use.

Low Maintenance:

Simplified design streamlines maintenance procedures.

Built-in fault indicators enable quick troubleshooting and resolution.

Unparalleled Support:

The company provides comprehensive after-sales service, including training, installation, commissioning, maintenance, and ongoing support.

Technical Specifications:

Power Supply: AC220V/50/60HZ Single Phase

Functions:

Wire Cutting

Single/Double-End Stripping

Single/Double-End Twisting

Single-End Twisting & Tinning

Double-End Twisting & Tinning

Productivity: 16,000-22,000 pcs/hour (depending on wire cutting length)

Note: Capacity varies based on wire type and size.

Applicable Wire Range: Hookup Diameter 0.3mm-3.0mm (AWG32-AWG18)

Cutting Length: 8mm to 9999mm

Stripping Length: 0.0mm to 10mm

Twisting Length: 3.0mm to 10mm

Tinning Length: 1mm to 10mm

Air Pressure: 6kgf (Clean and Dry Air Required)

Dimension: 670 x 840 x 1200 mm (W x L x H)

Net Weight: Approximately 310 Kg

The Automatic Multi-Function Wire Tinning Machine is a perfect solution  for businesses seeking to revolutionize their wire processing.  Its exceptional efficiency, multi-functionality,  user-friendly design, low maintenance requirements,  and comprehensive after-sales support make it a valuable asset  for any high-volume production environment.
