Automatic Wire Cut Strip Tin Dip Soldering Machine

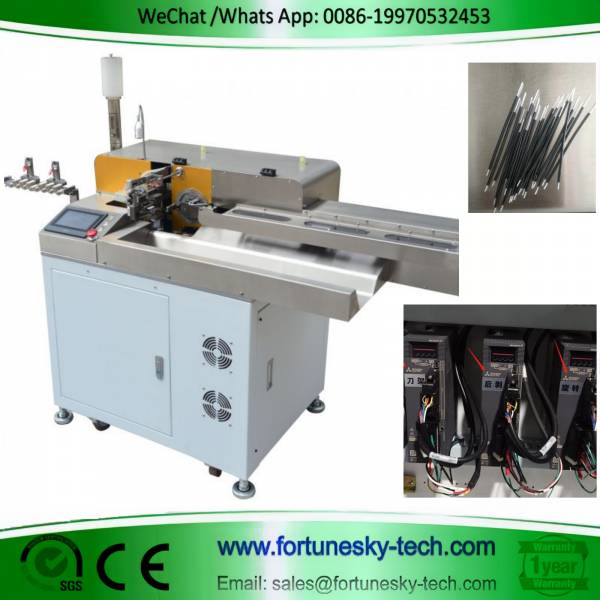

Unleash Unmatched Efficiency in Multi-Wire Processing: The DG-01BS Automatic Wire Cut Strip Tin Dip Soldering Machine

The DG-01BS Automatic Wire Cut Strip Tin Dip Soldering Machine represents a revolutionary leap in wire processing technology. This feature-rich machine tackles eight wires simultaneously, performing cutting, stripping, twisting, tinning, and more,  all in a single, automated operation.

Key Advantages:

Unparalleled Multi-Wire Processing: Effortlessly manage eight wires at once, significantly boosting production efficiency.

All-in-One Functionality: Integrates cutting, stripping (single or double-ended, with partial stripping options), twisting, tinning, and automatic features like wire feeding, tin wire delivery, and waste collection for a streamlined workflow.

Superior Speed and Efficiency: Achieve impressive production rates of 7000-13000 pieces per hour, depending on wire specifications.

Exceptional Precision Control: Delivers unmatched accuracy in all processing stages with features like computer-controlled knife adjustments and precise length control.

Enhanced User Experience: The intuitive 7-inch KINCO touchscreen interface with Chinese and English language options facilitates easy operation and minimizes training time.

Healthy Work Environment: The automatic smoke absorption system reduces harmful flux fume exposure for operators.

Technical Specifications:

Model: DG-01BS

Power Supply: AC220V/50/60HZ Single Phase

Function:

Wire cutting

Single/Double-end stripping (full or partial)

Double-end twisting

Single/Double-end tinning

Ribbon cable compatibility (customizable)

Wire Processing Range: AWG#32 - AWG#18 (wire diameter 0.6mm-3.2mm)

Productivity: 7000-13000 pcs/hour (depending on wire)

Cutting Length: 10-600mm (customizable)

Cutting Accuracy: 0.2 ± 0.02*L (length)

Stripping Length: 0-7mm (customizable above 7mm)

Twisting Length: 3-7mm

Tin Dipping Length: 0.5-7mm

Air Pressure: 5-6 kg

Machine Size: 1210 x 770 x 1370 mm (without protrusions)

Weight: Approximately 400kg

High-Quality Components:

Servo Motors: Hechuan (6 sets)

Pneumatic Components: SMC (solenoid valve, cylinder, air pipe)

Air Pressure Detection: SMC

Screw Guide: Taiwan HIWIN

Controller: US RAM computer control system

Color Touch Screen: KINCO

Full CNC Debugging: Precise control over parameters like knife size, stripping length, and tinning depth

The DG-01BS Automatic Wire Cut Strip Tin Dip Soldering Machine  is a perfect solution for businesses seeking to  revolutionize their wire processing operations.  Its exceptional efficiency, multi-functionality,  precision control, user-friendly design, and focus on  a healthy work environment make it a valuable asset  for any high-volume production environment.
