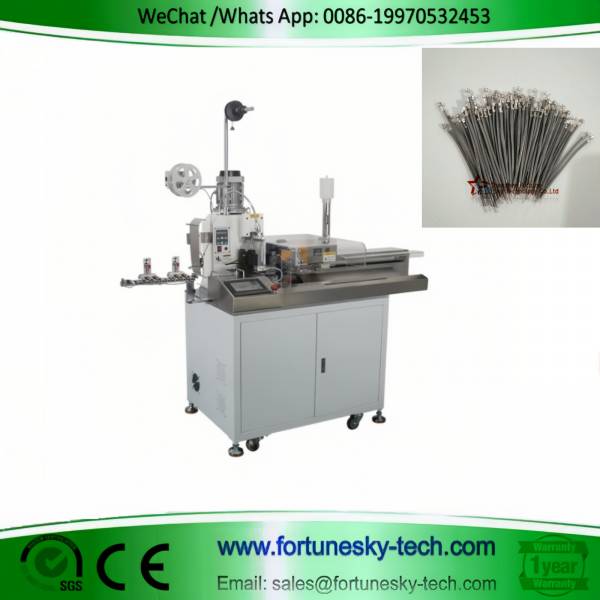

Automatic Multi Cut Strip Twist Tin 5-Wire Terminal Crimping Machine

Introducing the HWN-835: The All-in-One Powerhouse for Multi-Wire Processing

The HWN-835 Automatic Multi Cut Strip Twist Tin 5-Wire Terminal Crimping Machine represents a revolutionary leap in electronic wire processing.  This feature-rich machine tackles five AWG16-AWG32 wires simultaneously,  performing cutting, stripping, twisting, terminal crimping,  and even optional tinning, all in one cohesive operation.

Key Features:

Effortless User Experience: The intuitive touchscreen interface with Chinese and English language options facilitates easy operation and learning, minimizing training time for operators of all skill levels.

Superior Speed and Efficiency: Experience swift processing and material replacement, resulting in outstanding production rates and simplified maintenance for long-term productivity gains.

Unmatched Precision Control: The advanced servo control system with high-quality pneumatic components (including Taiwan Airtac solenoid valves and cylinders) delivers reliable and precise performance, guaranteeing consistent, high-quality results on every wire processed.

Smooth and Dependable Performance: Features threaded rod guide rails from Taiwan CPC/HIWIN for smooth, precise movements, enhancing overall machine performance.

Full Computerized Numerical Control: Provides intuitive control and adjustments through the user-friendly touchscreen interface. Fine-tune parameters like blade size, cutting length, stripping length, flux depth, and tin depth with exceptional ease.

Versatile Functionality:

Multi-Wire Processing Powerhouse: Effortlessly manage five electronic wires at once, significantly boosting production efficiency.

All-in-One Functionality: Integrates cutting, stripping, twisting, terminal crimping, and optional tinning into a single, streamlined operation.

Broad Wire Compatibility: Handles a wide range of electronic wires (AWG16-AWG32).

Adjustable Parameters: Provides fine-tuned control over a range of functions for optimal results on various wire types.

Cutting Length (32mm-650mm, with customization for longer wires)

Stripping Length (0.1mm-11mm)

Tinning Length (1mm-11mm)

Twisting Length (2mm-10mm)

Exceptional Crimping Force: Delivers a powerful 2.0-ton crimping force to ensure secure and reliable connections.

High-Speed Processing: Achieves impressive production rates, with speeds of 6000 pieces per hour for 100mm cutting lengths and 5200 pieces per hour for 220mm cutting lengths.

Technical Specifications:

Model No.: HNW-835

Functions: Wire cutting, single-end stripping, double-end stripping, single-end crimping, single-end twisting, single-end tinning (optional)

Cutting Length: 32mm-650mm (customizable for longer wires)

Cutting Accuracy: 0.2 ± 0.02xL

Stripping Length: 0.1mm-11mm

Wire Diameter: 0.6mm-3.5mm

Tinning Length: 1mm-11mm

Twisting Length: 2mm-10mm

General Wire Diameter: AWG16-AWG32

Crimping Force: 2.0 Ton

Working Speed:

Cutting Length 100mm: 6000 pcs/hour

Cutting Length 220mm: 5200 pcs/hour

Air Pressure: 0.5-0.7 MPa

Detection Devices: Crimping detection, wire missing detection, wire knotting detection, terminal presence/absence detection

Blade Material: High-speed steel

Machine Size: 1500 x 800 x 1600 mm

Machine Weight: 290 Kg

Auxiliary Device: Terminal waste paper rewinding device

Power Supply: AC220 Single-Phase 8A

The HWN-835 Automatic Multi Cut Strip Twist Tin 5-Wire Terminal Crimping Machine  is a perfect solution for businesses seeking to  revolutionize their electronic wire processing.  Its exceptional efficiency, multi-functionality,  precision control, and versatility make it a valuable asset  for any high-volume production environment.
