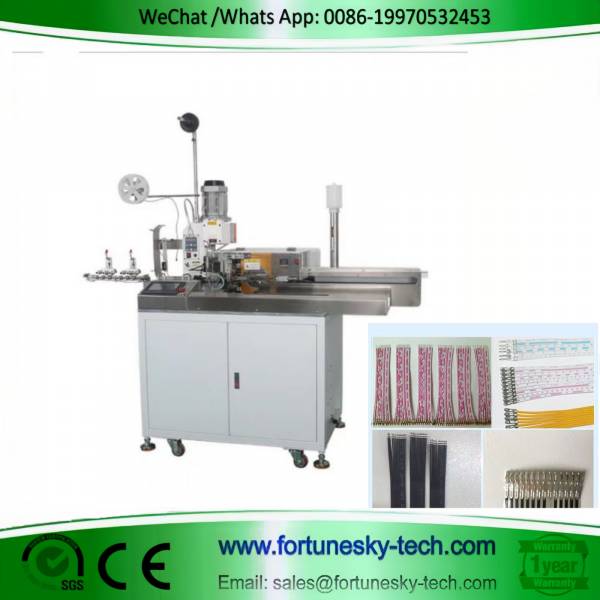

Fully Automatic Ribbon Cable Cut Strip Twist Crimp Tinning Machine

Unleash Unmatched Efficiency and Precision in Ribbon Cable Assembly: The Next-Generation Crimping Solution

This innovative Fully Automatic Ribbon Cable Single-Head Crimping Machine represents a quantum leap in wire processing technology.  This feature-rich machine streamlines  ribbon cable crimping processes, delivering  exceptional speed, precision, and user-friendliness  for maximized production efficiency.

Key Features:

Effortless User Experience: The intuitive touchscreen interface with Chinese and English language options facilitates easy operation and learning, minimizing training time and ensuring seamless use for operators of all skill levels.

Superior Speed and Efficiency: Experience swift processing and material replacement, resulting in outstanding production rates and simplified maintenance for long-term productivity gains.

Unmatched Precision and Control: The advanced servo control system with high-quality pneumatic components (including Yadeke cylinders) delivers reliable and precise performance, guaranteeing consistent, high-quality results on every cable processed.

Smooth and Dependable Performance: Features threaded rod guide rails from Taiwan CPC/HIWIN for smooth, precise movements, enhancing overall machine performance.

Full Computerized Numerical Control: Provides intuitive control and adjustments through the user-friendly touchscreen interface. Fine-tune parameters like blade size, wire cutting length, stripping length, soldering flux immersion depth, and soldering immersion depth with exceptional ease.

Versatile Functionality: Offers wire cutting, single/double-end stripping, single-head terminal crimping, and optional single-end twisting functionalities, providing exceptional versatility for diverse ribbon cable assembly needs.

Broad Application Range: Handles a wide range of wire diameters (AWG#16-AWG#32) and cable lengths (cutting lengths from 32mm to 1000mm with customization for longer wires).

Technical Specifications:

Function: Wire cutting, single/double-end stripping, single-head terminal crimping, single-end twisting (optional)

Cutting Length: 32mm-1000mm (customizable for longer wires)

Cutting Accuracy: 0.2 ± 0.02*L

Stripping Length: 0.1mm-10mm

Wire Diameter: 0.6mm-3.5mm

Soldering Length: 1mm-10mm

Twisting Length: 2mm-10mm

Common Wire Diameter: AWG#16-AWG#32

Crimping Force: 2.0 Ton

Working Speed: 800-1000 pieces/hour (for wires within 100mm, specific speed depends on wire and terminal type)

Air Pressure: 0.5-0.7 MPa

Detection Devices: Terminal detection, wire missing detection, wire knotting detection, terminal presence detection

Tool Material: High-speed steel

Machine Size: 1500 x 800 x 1600 mm

Machine Weight: 290 Kg

Auxiliary Device: Terminal waste paper winding

Power Supply: AC220 Single-Phase 8A

Defect Rate: 0.05%

The Fully Automatic Ribbon Cable Single-Head Crimping Machine  is a perfect solution for businesses seeking  to revolutionize their ribbon cable assembly operations.  Its exceptional speed, precision,  user-friendly interface, and advanced features  make it a valuable asset  for maximizing production efficiency and cable quality.
