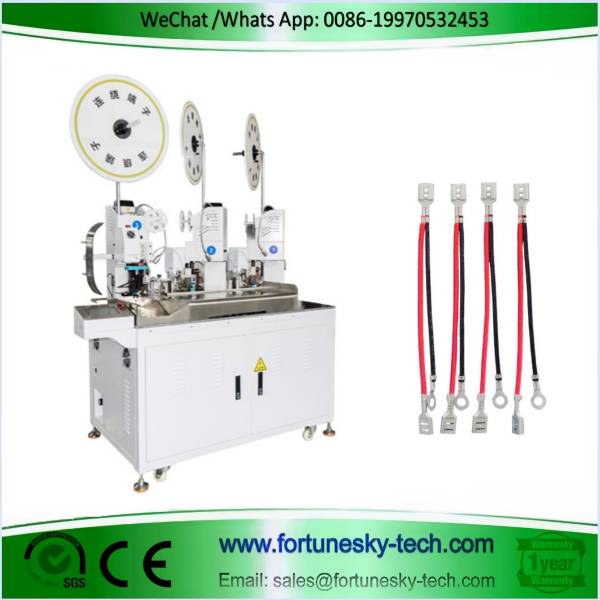

Fully Automatic Double Wires Three Terminals Crimping Machine

The CM-N03: The Next-Gen Solution for High-Volume, Triple-Terminal Crimping

The CM-N03 Fully Automatic Double Wires Three Terminals Crimping Machine represents a revolutionary leap in wire processing technology.  This feature-rich machine automates complex crimping tasks,  delivering unmatched efficiency,  precision, and ease of use for high-volume production.

Key Features:

Advanced Automation: Fully automates wire cutting, stripping (including both-ends and single-end half stripping), and crimping for single and double wires, including intricate three-terminal crimping applications.

User-Friendly Operation: Employs a modular design with standard parts for effortless adjustment and minimal maintenance. The intuitive touch screen interface with digital parameter control allows for simple operation after basic training, enabling workers to manage two machines simultaneously for maximized production efficiency.

Unmatched Efficiency and Control: Provides digital control over cutting and stripping lengths for exceptional precision and production consistency. The electric cutter design further optimizes processing speed.

High Performance and Stability: Delivers unmatched automation and efficiency, making it the leading high-volume crimping solution in the market.

Durable Construction: Built with high-quality components, including HIWIN guide rails, TBI lead screws, and AIRTAC pneumatic accessories, ensuring long-lasting performance.

Broad Application Range: Handles a wide variety of terminals (horizontal, vertical, and flag) and wires (AWG16 to AWG28), offering exceptional versatility.

Impressive Production Rates: Achieves outstanding production speeds, including:

2500 pcs/hour for three-terminal crimping

3800 pcs/hour for double wire equal crimping

4200 pcs/hour for single wire both-ends crimping

4500 pcs/hour for single-end crimping

Customizable Crimping Force: Offers a standard crimping force of 2.0 tons with the ability to be customized for specific needs.

Enhanced Safety and Reliability: Includes integrated detection systems for wire presence, knots, crimped terminals, and air pressure, ensuring secure and reliable operation.

Technical Specifications:

Model No.: CM-N03

Name: Fully Automatic Double Wires Three Terminals Crimping Machine

Machine Function: Wire cutting, stripping (both-ends & single-end half), single/double wire crimping (various configurations)

Dimension (LxWxH): 1000 x 750 x 1650 mm

Net Weight: 480 Kg

Display: Color Touch LCD

Operation Method: Automatic and Manual

Cutter Adjust Method: Electric

Cutter Material: High-Speed Steel

Pneumatic Accessory: Original AIRTAC

Lead Screw Guide Rail: Taiwan HIWIN Guide Rail, TBI Lead Screw

Wire Cutting Range: 50-9999 mm (minimum limited by crimping mold)

Cutting Accuracy: +/- 0.3mm (for lengths < 100mm) or +/- 0.5mm (for lengths > 100mm)

Stripping Length:

Front: 1.00-8.00 mm (Half: 2.00-8.00 mm)

Tail: 1.00-8.00 mm (Half: 2.00-6.00 mm)

Suitable Terminals: Horizontal, Vertical, Flag

Suitable Wire Size: AWG16 to AWG28

Production Rates (reference: AWG28-AWG16, 120mm cutting length):

Three-Terminal Crimping: 2500 pcs/hour

Double Wire Equal Crimping: 3800 pcs/hour

Single Wire Both-Ends Crimping: 4200 pcs/hour

Single-End Crimping: 4500 pcs/hour

Terminal Crimping Force: 2.0 Tons (standard, customizable)

Air Pressure: 5-6 kg/cm2 (clean and dry air required)

Power: AC220V 2.5 KW

Detection Devices: Wire presence, knot detection, crimped terminal detection, air pressure detection

**The CM-N03 Fully Automatic Double Wires Three Terminals Crimping Machine  is a perfect solution for businesses seeking to  revolutionize their wire processing workflows.  Its exceptional  automation, precision, efficiency, and user-friendliness  make it a valuable asset for  high-volume production environments
