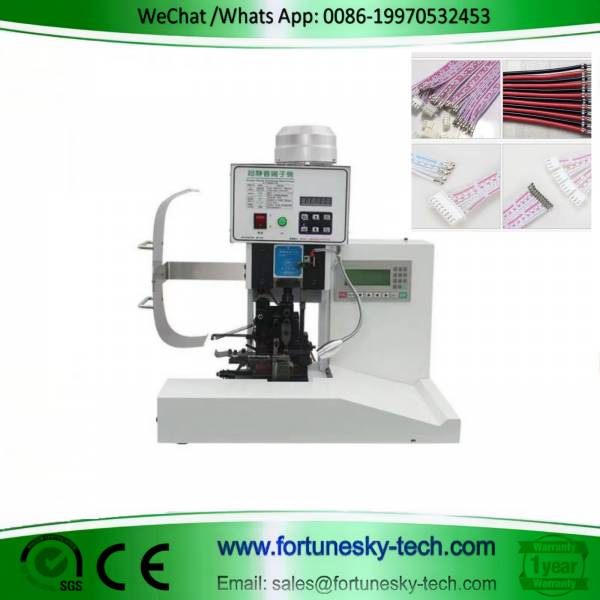

Ribbon Cable Splitting and Terminal Crimping Machine with Counter

Unleash High-Volume Ribbon Cable Assembly Power: Introducing the Next-Gen Crimping Machine

This innovative Ribbon Cable Splitting and Terminal Crimping Machine with Counter revolutionizes your ribbon cable assembly process,  delivering exceptional efficiency and ease of use.  Experience a quantum leap in production speed and minimize downtime  with this user-friendly and virtually maintenance-free solution.

Key Features:

Unmatched Speed and Efficiency: Achieve an outstanding output of up to 12,000 crimps per hour, significantly boosting your production capacity.

Simplified Setup and Debugging: The user-friendly LCD display with new NC debugging parameters facilitates a smooth setup process and minimizes downtime during troubleshooting.

Effortless Operation: Eliminates the need for complex mold adjustments, reducing labor costs and simplifying operation for maximum efficiency.

Minimal Maintenance: Virtually maintenance-free design keeps your production line running smoothly with minimal interruptions.

Broad Compatibility: Handles a wide range of ribbon cables, including 0.8-2.0mm wires (AWG20-28), red/blue/white FBC (2468), gray FBC (2651), and color FBC (2-40 pins).

Precise Cutting and Splitting: Delivers accurate cutting lengths exceeding 70mm and consistent ribbon cable splitting of 30mm.

Adjustable Crimping Force: Offers adjustable crimping pressure (0.4-0.7 MPa) for optimal crimping results on various cable types.

Technical Specifications:

Size: 260 x 300 x 780 mm (LxWxH)

Weight: 80 Kg

Power Source: Single Phase 220VAC/ 50/60HZ, 10A

Display: Chinese/English (refer to user manual for English)

Total Power: 550W

Cylinder Pressure: 0.4-0.7 MPa (adjustable)

Working Efficiency: 12,000 crimps/hour (calculated as 12 pins above ribbon cable)

Appropriate Wire: 0.8-2.0mm, AWG20-28, Red/Blue/White FBC (2468), Grey FBC (2651), Color FBC and etc 2-40 pins

Cutting Length: > 70mm

Ribbon Cable Split Length: 30mm

Crimping Strength: 1.5T

This next-generation crimping machine is the perfect solution for  high-volume ribbon cable assembly applications.  Its exceptional  speed, user-friendly design, and minimal maintenance  requirements make it a valuable asset  for manufacturers seeking to maximize their productivity.
