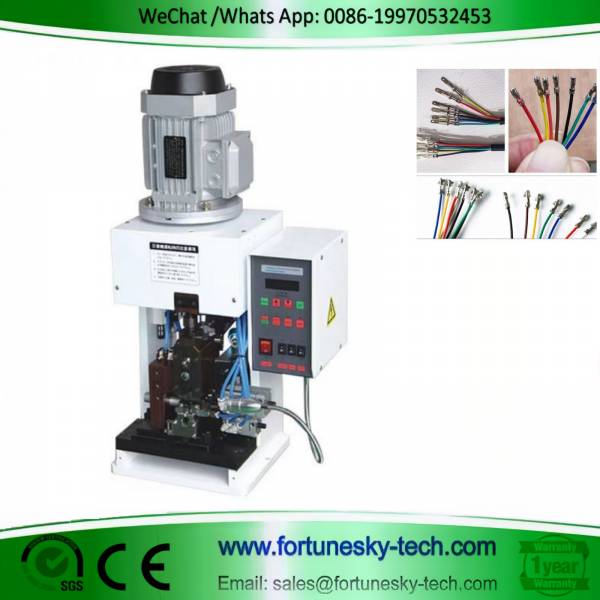

Benchtop Multicore Cable Stripping and Crimping Machine

The All-in-One Wire Stripping and Crimping Powerhouse: Efficiency Meets Precision

This innovative Benchtop Multicore Cable Stripping and Crimping Machine revolutionizes your wire processing workflow by combining stripping and crimping functionalities in a single, powerful solution. Designed for efficiency and versatility, it tackles multicore cables, especially ultra-fine and shielded wires, with exceptional performance.

Key Features:

Combined Stripping and Crimping: Streamlines your workflow by performing both stripping and crimping tasks in one step, saving time and effort.

Ultra-Fine Wire Compatibility: Specifically designed to handle delicate wires, including ultra-fine and shielded types, ensuring precise processing.

Quiet, High-Speed Operation: Delivers fast and efficient processing while maintaining a quiet operation ideal for workshops.

Minimal Power Consumption: Offers energy-efficient operation without compromising on performance.

Automatic Scrap Removal: Maintains a clean workspace by automatically removing wire scraps during processing.

Adjustable Speed Control: Provides flexibility to accommodate various skill levels and project requirements.

Durable Pneumatic Components: Ensures reliable and consistent crimping for a wide range of terminals and connectors.

Technical Specifications (Available in Two Models):

Feature Model 1 Model 2

Power Supply Single Phase 200V-240V 50/60Hz (Customizable) Single Phase 200V-240V 50/60Hz (Customizable)

Motor Power 400W 750W

Air Source 0.3-0.4 MPa (Dry, Clean Air) 0.5-0.6 MPa (Dry, Clean Air)

Dimensions (W x L x H) 530mm x 400mm x 830mm 500mm x 450mm x 1000mm

Weight 70 Kg 100 Kg

Applicable Wire Diameter AWG36# - AWG20# (Wire Dependent) AWG16 - AWG24 (Wire Dependent)

Applicable Wire Types AV, AVS, AVSS, CAVUS, KV, KIV, UL, V Teflon, Fiber Wire, etc. UL, IV Teflon, Fiber Thread, etc.

Stripping Length 1.0mm - 10.0mm 1.0mm - 8.0mm

Tangent Error 0.05mm - 0.1mm 0.05mm - 0.1mm

Position Error 0.05mm - 0.1mm 0.05mm - 0.1mm

Crimp Terminal Open Continuous Terminal, Horizontal Open Continuous Straight Terminal Open Continuous Terminal, Horizontal Open Continuous Straight Terminal

Pressing Ability 1.5 Tons 2 Tons

Stripping Stroke 20mm 20mm

This All-in-One Wire Stripping and Crimping Machine is a perfect solution  for anyone who needs to process multicore cables, especially delicate  ultra-fine and shielded wires, with efficiency and precision.  This user-friendly machine offers a combination of  valuable features, quiet operation, and customizable options  to elevate your wire processing experience.
