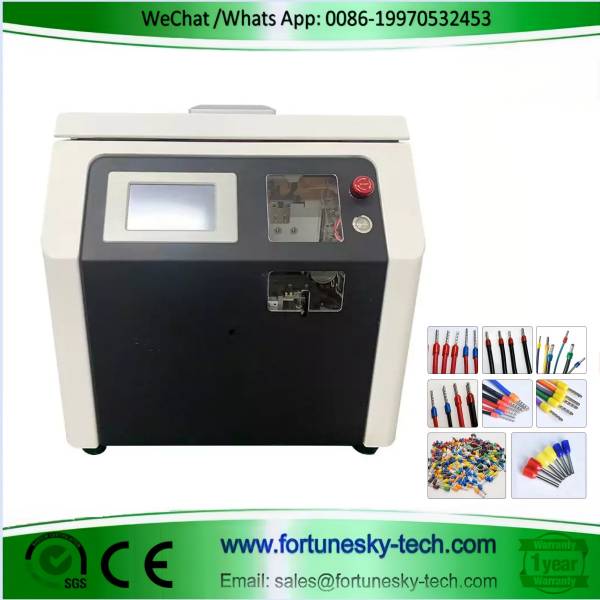

Automatic Wire Threading Stripping Ferrule Crimping Machine

The All-in-One Wire Processing Machine: From Threading to Crimping

The Automatic Wire Threading Stripping Ferrule Crimping Machine is a powerful and versatile solution for streamlining your wire processing workflow. This innovative machine tackles multiple tasks efficiently, saving you time and effort.

Key Features:

Multi-Functional: Performs wire threading, stripping, and ferrule crimping in a single automated process, minimizing manual handling and maximizing efficiency.

Human-Machine Interface: Features an intuitive interface for user-friendly control and operation.

Automatic and Manual Operation: Offers both automatic triggering and manual operation modes for added flexibility.

Broad Wire Compatibility: Suitable for BVR wires in various sizes (0.3, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 square mm).

Diverse Crimping Options: Handles a variety of crimping shapes, including quadrilateral, hexagon, and even custom shapes upon request.

Easy Tool Replacement: Allows for straightforward replacement of fixtures and adjustments, minimizing downtime.

High Production Capacity: Delivers a production rate of 2.5 seconds per wire, ensuring efficient processing.

Safety Features: Includes built-in safety measures like terminal presence detection and safety door monitoring.

Technical Specifications:

Product Name: Automatic Wire Threading Stripping Ferrule Crimping Machine

Power Supply: AC220V 50/60Hz

Air Source: 0.6-0.8MPa (Dry air inlet pressure at minimum 0.6 MPa)

Control Method: Human-Machine Interface, Electronic Control, Pneumatic Control

Running Way: Automatic Trigger, Manual Operation

Suitable Wires: BVR wires (0.3, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 square mm)

Net Weight: Around 60kg

Dimension: 350mm x 450mm x 400mm

Terminal Specifications: Insulation length within 7.5mm, Conductor length within 12mm

Crimping Shapes: Quadrilateral, Hexagon (custom shapes available)

Replacement Procedure: Manual fixture replacement, vibration plate adjustment, and electronic memory adjustment

Production Capacity: 2.5 seconds per wire (single machine cycle)

Operating Environment: Temperature: 10-25°C, Humidity: 30-80%RH (no condensation)

The Automatic Wire Threading Stripping Ferrule Crimping Machine is a  valuable asset for businesses that require efficient and  high-quality wire processing.  This versatile machine  streamlines your workflow by  combining multiple functionalities  into a single, user-friendly solution.
