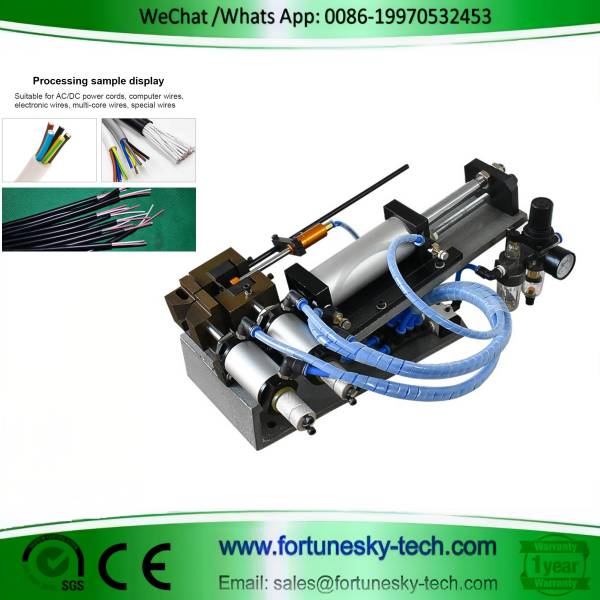

Pneumatic Multi Conductor Cable Jacket Stripping Machine

The LL-Series Pneumatic Cable Stripper: A Versatile Solution for Multi-Conductor Cable Stripping

The LL-Series Pneumatic Cable Stripper is a family of powerful and versatile machines designed for efficient and precise removal of jackets from various multi-conductor cables.  These user-friendly machines cater to a wide range of applications, including stripping AC/DC cables, computer cords, and power cords.

Key Features:

Broad Cable Compatibility: The LL-Series offers a variety of models (LL-305, LL-310, LL-315, LL-330, LL-416, LL-520) to accommodate different cable sizes, with maximum stripping diameters ranging from 7mm to 40mm.

Precise and Clean Stripping: Delivers clean and damage-free stripping of inner conductors, ensuring the integrity of your processed cables.

Effortless Operation: Features a user-friendly design for convenient and efficient operation, simplifying cable stripping tasks.

Technical Specifications:

Model No.: LL-305, LL-310, LL-315, LL-330, LL-416, LL-520 (depending on stripping diameter needs)

Stroke: 50mm, 100mm, 150mm, 330mm, 150mm, 500mm (depending on model)

Stripping Diameter (Max): 7mm, 12mm, 18mm, 20mm, 25mm, 40mm (depending on model)

Power Voltage: AC 110V/220V 60Hz/20Hz

Air Pressure: 3-7 Kg/cm2

Force: 31-73kg, 49-115kg, 84-196kg, 84-196kg, 165-300kg, 400kg (depending on model)

Net Weight: 20kg, 25kg, 35kg, 65kg, 45kg, 102kg (depending on model)

Size (mm): Refer to table above for specific dimensions based on model selection.

Cutter Types and Options:

Stripping Cutter (1 set, 2 pieces)

Default Cutter Type:

LL-305: Flat Cutter (suited for flat cable)

Other models: V-Cutter (suited for wire diameter 4.0mm or less)

Optional Cutters:

Flat Cutter (suited for flat cable)

Round Cutter (various sizes for different wire diameters above 4.0mm)

Choosing the Right Model:

For optimal performance, please provide your wire diameter and insulation thickness when selecting a suitable blade and model from the LL-Series. This information will ensure you get the  most appropriate machine for your specific cable processing needs.

The LL-Series Pneumatic Cable Stripper is a valuable asset for anyone  who needs to efficiently and precisely strip jackets from various  multi-conductor cables.  This versatile series offers a range of models  to accommodate different cable sizes, delivers clean stripping results,  and features a user-friendly design for effortless operation.
