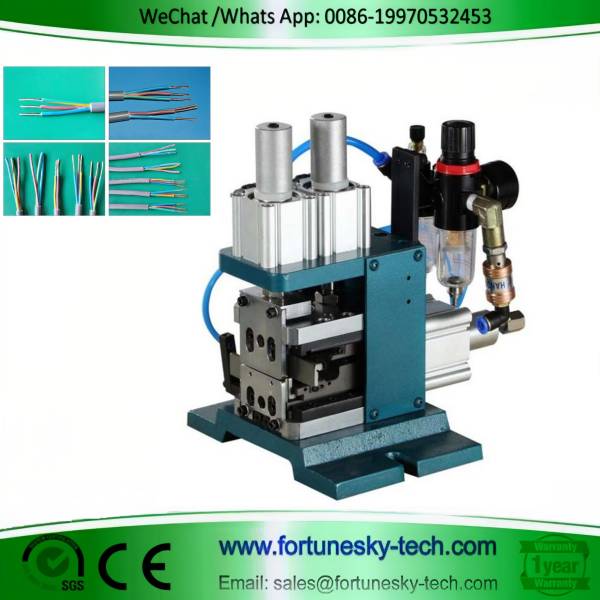

3FN Pneumatic Wire Stripper Twister

The 3FN Pneumatic Wire Stripper and Twister: A Multi-Functional Workhorse for Wire Processing

The 3FN Pneumatic Wire Stripper and Twister is a powerful and versatile benchtop machine designed to streamline your wire processing workflow. This 2-in-1 tool tackles both stripping and twisting tasks with exceptional efficiency, making it ideal for various applications.

Multi-Functional Efficiency:

Stripping and Twisting: Combines stripping and twisting functionalities into a single machine, saving time and effort compared to using separate tools.

Broad Wire Compatibility: Processes a wide range of multicore wires commonly used in power cords, shielded wires, data cables, telephone cables, Ethernet cables, ribbon cables, and more.

Wide Wire Gauge Range: Handles wires from fine 32AWG to thicker 18AWG, and even accommodates wires exceeding 1.8mm in diameter.

Technical Specifications:

Model No.: 3FN

Wire Size: AWG18 - AWG32 (and wires exceeding 1.8mm diameter)

Voltage: AC220V/50Hz

Stripping Length: Single Cutter: 25mm, Double Cutters: 1.5-5.0mm

Production Rate: 1-10 pcs/time (AWG18-AWG32)

Air Pressure: 4.0-7.5 Kg

Dimensions: 320mm x 230mm x 300mm

Net Weight: 15 Kg

The 3FN Pneumatic Wire Stripper and Twister is a valuable asset for anyone  who needs to efficiently process multicore wires. This versatile machine  offers a combination of stripping and twisting functionalities,  broad wire compatibility, and a comfortable production rate,  making it a perfect solution for various applications on your workbench.
