Wire Stripping Machine Cut Strip Twist Stranded Wire

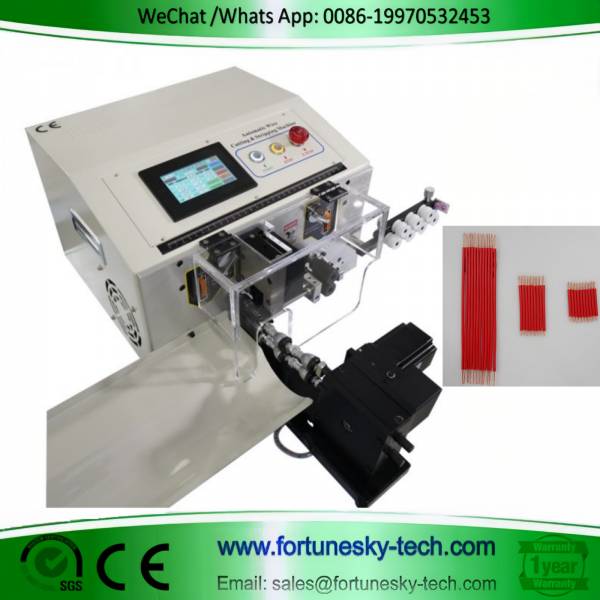

The SWT508-NX2/NX2S: All-in-One Wire Processing Machine

The SWT508-NX2/NX2S Wire Stripping Machine Cut Strip Twist Stranded Wire is a versatile and user-friendly automatic wire stripping machine, incorporating advanced automation technology. This powerful machine offers a wide range of features for efficient and precise wire processing in various industries.

User-Friendly Design and Advanced Features:

Intuitive Interface: The user-friendly LCD screen with an English/Chinese language option simplifies operation and parameter adjustments.

Customizable Processing: Set wire length, thrum and line end parameters to meet your specific needs.

Multiple Stripping Finishes: Achieve different levels of stripping finishes for various applications.

High-Performance Functions: Includes functions like high-tension line cutting and casing shearing for optimal processing.

Broad Application Range:

Wide Material Compatibility: Processes various wires, including PVC, Teflon, glass fiber, braided, and single/double electric wires.

Industry Versatility: Widely used in electronics, telecommunications, electrical appliances, motors, lighting, toys, and other industries requiring wire processing.

Technical Specifications:

Model No.: SWT508-NX2/NX2S

Power: 350W

Electrical Connection: 110V/220V 50Hz/60Hz

Operation Interface: English/Chinese (LCD Display)

Machine Dimensions: 450mm x 420mm x 290mm

Wire Length Range: 1-10000mm

Stripping Length: Front End: 0-30mm; Rear End: 0-20mm

Length Accuracy: ±(0.002 x L) mm

Wire Cross Section: Double Wire: 0.1-2.5mm²; Single Wire: 0.1-4mm²

Max Conduit Inside Diameter: 6mm

Twisting Method: Double Ended or Single Ended

Wire Material: PVC, Teflon, Braided, Fiberglass Wire

Blade Material: Hard Tungsten Steel

Transport Speed (at 100mm wire length): 3000-6000 pieces per hour

Driving Mode: Four-wheel Drive (Silent Hybrid Stepper Motor, 0.1mm forward per step)

Stripping Speed: Adjustable (0 - slowest; 9 - fastest)

Weight: 38kg

The SWT508-NX2/NX2S Automatic Wire Stripping Machine is a powerful and versatile solution for all your wire processing needs. This user-friendly machine offers exceptional performance,  customizable processing options, and broad application compatibility,  making it a valuable asset for various industries.
