Automated Multicore Power Cable Stripping Machine

The JT-505: Revolutionize Cable Stripping with Multicore Efficiency

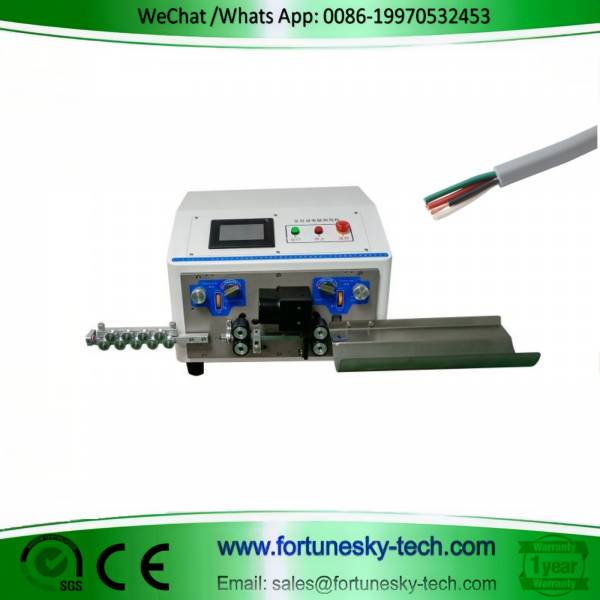

The JT-505 Automatic Multicore Power Cable Stripping Machine redefines efficiency in cable processing. This advanced equipment tackles power cables with ease, simultaneously cutting and stripping the outer sheath and core wire insulation.

Unmatched Versatility:

Multicore Processing: Process 2 to 8 cores simultaneously, ideal for lamp cables, power cords, flat power cords, and USB data cables.

Broad Cable Compatibility: Handles multi-core power cables (2-8 cores), PVC power cords, and rubber cords, offering a wide range of application possibilities.

Precision and Efficiency:

Automated Operation: Simplify your workflow with automatic cutting and stripping, ensuring consistent, high-quality results.

Adjustable Stripping Lengths: Precisely remove insulation with head stripping from 0.1-250mm and tail stripping from 0.1-70mm.

High Processing Speed: Process 600-1000 strips per hour, ideal for high-volume production environments.

User-Friendly Design:

Intuitive Touchscreen: The 4.3-inch touchscreen with bilingual (Chinese and English) options simplifies operation.

Compact Design: The space-saving design integrates seamlessly into your workspace.

Technical Specifications:

Model: JT-505

Dimensions: 460mm x 460mm x 380mm

Weight: 38kg

Display: 4.3-inch Touchscreen (Chinese and English)

Power Supply: AC175V-250V, 50/60Hz

Power Consumption: 80W-480W

Cutting Length: 0.1mm-99999.9mm

Stripping Length: Head: 0.1-250mm, Tail: 0.1-70mm

Suitable for Wire: Multi-core power cable (Core wire: 2-8 pcs), PVC power cord, rubber cord, etc.

Tool Material: Tungsten Steel/Imported High-Speed Steel

Drive Mode: Four-wheel Drive, Roller Feed

Wire Stripping Rate: 600-1000 strips per hour (adjustable)

Wire Pressure Adjustment: Manual Pulley Adjustment

Pulse Equivalent: 1 pulse = 1 step

In-line Error: 0.02mm

Blade Motor Accuracy: 0.1mm per step (Silent Hybrid Stepper Motor)

Additional Features: Automatic outgoing line, automatic incoming line, timing start

The JT-505 is a powerful and versatile solution for multicore cable processing. Its ability to handle multiple cores simultaneously combined with its precision and user-friendly features make it ideal for boosting productivity and achieving consistent, high-quality results.
