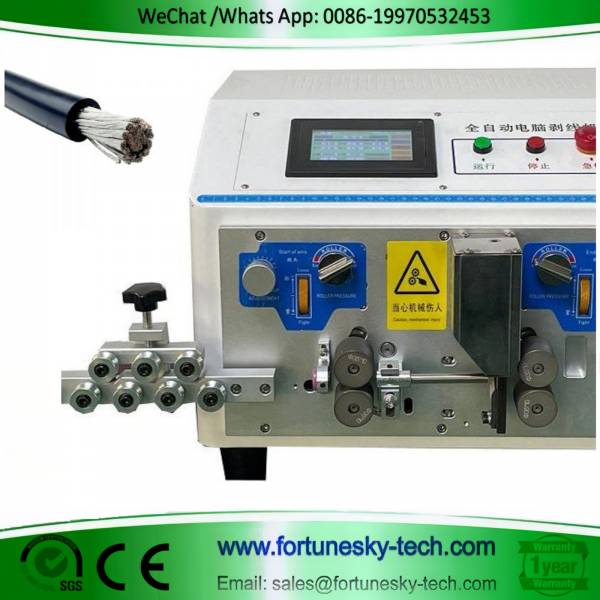

Automatic Heavy Gauge Wire Cutting and Stripping Machine

Conquer Thick Wires with the Automatic JT-502 Wire Processing Machine

Stop struggling with manual wire processing! The JT-502 Automatic Heavy Gauge Wire Cutting and Stripping Machine tackles even the thickest wires with ease, thanks to its innovative design and advanced features. This  machine automates your workflow, boosting productivity and achieving consistent, high-quality results.

Effortless Power and Precision:

Handles Large Wires: Effortlessly cut and strip wires from 0.1mm to 16mm², ideal for industrial applications.

Unmatched Accuracy:  Delivers precise cutting and stripping lengths with minimal tolerance (0.002 x L mm).

Automated Efficiency:  Features automatic shutdown, wire infeed/outfeed, and timing start for a streamlined workflow.

High-Volume Processing:  Processes 1000-3000 strips per hour, perfect for large-scale projects.

User-Friendly Design:

Compact Footprint:  The compact design makes it ideal for space-saving integration into your workspace.

Intuitive Interface:  The user-friendly 4.3-inch touchscreen with bilingual (Chinese and English)  options simplifies operation.

Technical Specifications:

Model: JT-502

Dimensions: 470mm x 430mm x 380mm

Weight: 38kg

Display: 4.3-inch Touchscreen (Chinese and English)

Power Supply: AC175V-250V, 50/60Hz

Power Consumption: 120W-220W

Cutting Length: 0.1mm-99999.9mm

Stripping Length: Head: 0.1-30mm, Tail: 0.1-30mm

Cutting Core: 0.1-16mm²

Cutting Tolerance: 0.002 x L(mm)

Intermediate Stripping: 13 points (can be added)

Conduit Diameter: 1.5mm-9mm

Tool Material: Tungsten Steel/Imported High-Speed Steel

Drive Mode: Four-wheel Drive

Wire Stripping Rate: 1000-3000 strips per hour (adjustable)

Wire Pressure Adjustment: Manual Skate Adjustment

Pulse Equivalent: 1 pulse = 1 step

In-line Error: 0.05mm

Blade Motor Accuracy: 0.03mm per step

Inlet and Outlet Motor Precision: Silent hybrid stepper motor (0.1mm per step)

Additional Features (Optional): Automatic shutdown due to lack of wires, automatic outgoing wires, automatic incoming wires

The JT-502 is a powerful and versatile solution for industrial wire processing.  This machine automates tasks, ensures precision, and significantly improves your overall workflow efficiency.
