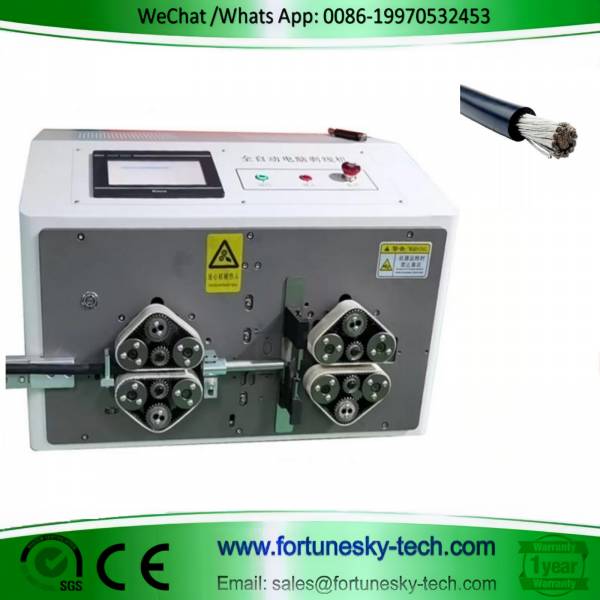

Automatic Max 70mm² Welding Cable Cutting Stripping Machine

Introducing the JT-510: Advanced Wire Processing with Unmatched Precision

The JT-510 Automatic Max 70mm² Welding Cable Cutting Stripping Machine redefines wire processing efficiency with its cutting-edge technology.  This versatile machine tackles a wide range of wires, including lamp wires, power cords, flat power cords, and data cables.

Unmatched Control and Efficiency:

Intelligent Power: The 641-bit intelligent control system simplifies operation and optimizes performance. Store up to 100 data sets for quick retrieval and repeat jobs effortlessly.

Touch of Precision: The user-friendly 7-inch touchscreen (available in Chinese and English) provides intuitive control for error-free length cutting and high output rates.

All-in-One Versatility:

Multi-Wire Capability: Process lamp wires, power cords, flat power cords, and data cables with ease. It strips both the outer sheath and core wire of data cables, offering a complete solution.

Wide Range and Precision: Handle wires from 1mm to 70mm² (square BV) and 35mm² (BVR). Achieve accurate cutting and stripping with a head stripping range of 0.1mm-250mm and tail stripping of 0.1mm-100mm.

Technical Specifications:

Model: JT-510

Dimensions: 680mm x 560mm x 480mm

Weight: 90kg

Display: 7-inch Touchscreen (Chinese and English)

Power Supply: AC220V/50-60Hz

Power Consumption: 800W-1400W

Cutting Length: 1mm-99999mm

Stripping Length: Head: 0.1-250mm, Tail: 0.1-100mm

Cutting Range: 1-70mm² (BV Wire), 35mm² (BVR Wire)

Suitable for Wires: New energy vehicle wiring harness, rubber wire, PVC wire (BV & BVR)

Tool Material: Tungsten Steel/Imported High-Speed Steel

Drive Mode: Crawler Drive

Wire Stripping Rate: 400-1000 pieces per hour (adjustable)

Wire Pressure Adjustment: Motorized Adjustment

Pulse Equivalent: 1 pulse = 1 step

In-line Error: 0.02mm

Blade Motor Accuracy: 0.1mm per step (Silent Hybrid Stepper Motor)

Additional Features: Automatic outgoing line, automatic incoming line, timing start

The JT-510 offers a powerful combination of intelligent control, unmatched precision, and all-in-one versatility. This advanced machine simplifies wire processing for various applications, ensuring efficient and high-quality results.
