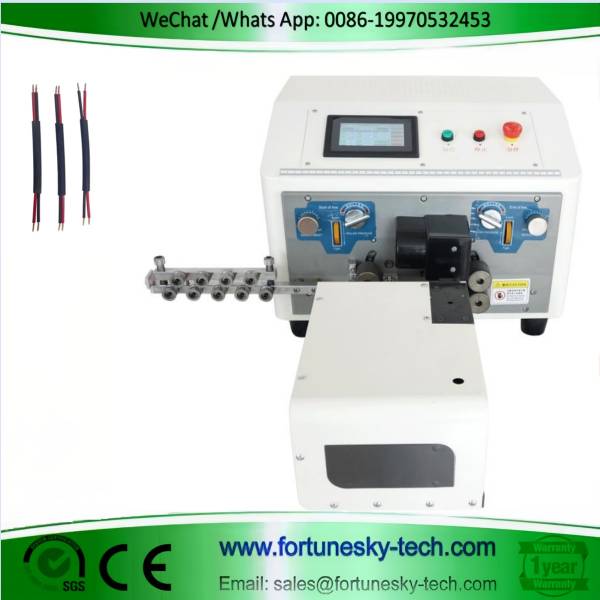

Automatic Twin Flat Electric Cable Cutting Stripping Twisting Machine

Introducing the Advanced Wire Processing Machine with Intelligent Control

This Automatic Twin Flat Electric Cable Cutting Stripping Twisting Machine takes wire processing to the next level with its cutting-edge technology.  Here's what makes it stand out:

Intelligent Control for Efficiency:  A state-of-the-art 32-bit control system with a user-friendly, bilingual (Chinese and English) touchscreen interface simplifies operation. Store up to 100 data sets for quick retrieval and repeat jobs effortlessly.

Exceptional Versatility:  This high-performance machine tackles a wide range of wire types, including electronic wires, PVC wires, braided wires, silicone wires, high-temperature wires, Teflon wires, and insulated wires. Its adjustable settings allow you to tailor its operation to your specific needs.

Precise Processing:  Featuring a silent hybrid stepping motor with 0.1mm precision and high-quality blades (Tungsten Steel or Imported High-Speed Steel), this machine delivers accurate cutting, stripping, and twisting for exceptional results.

Detailed Specifications:

Model (replace with actual model number if available)

Wire Feeding/Retrieval Motor: Silent hybrid stepping motor (0.1mm per step)

Blade Material: Tungsten Steel/Imported High-Speed Steel

Twisting Method: Motorized

Display: 4.3-inch Touchscreen

Power Supply: AC 175V-250V, 50/60Hz

Drive Mode: Four wheels

Power Consumption: 120W-220W

Cutting Length: 0.1mm - 99999.9mm

Stripping Length: Head: 0.1mm-100mm, Tail: 0.1mm-80mm

Wire Core Cutting: Up to 6 sqmm, flat wire stripping

Cutting Tolerance: Within 0.002 x L(mm)

Intermediate Stripping: 13 points

Conduit Diameter: 1.5mm-9mm

Stripping Rate: 1000-3000 pieces per hour

Wire Pressure Adjustment: Available

Pulse Equivalent: 0.05mm error within 1 meter of wire

Blade Motor Precision: 0.03mm per step

Net Weight: 48 kg

Additional Features: Automatic wire break detection and stop, automatic wire feeding and retrieval, timed startup
