Automatic Wire Stripping Angle Bending Machine

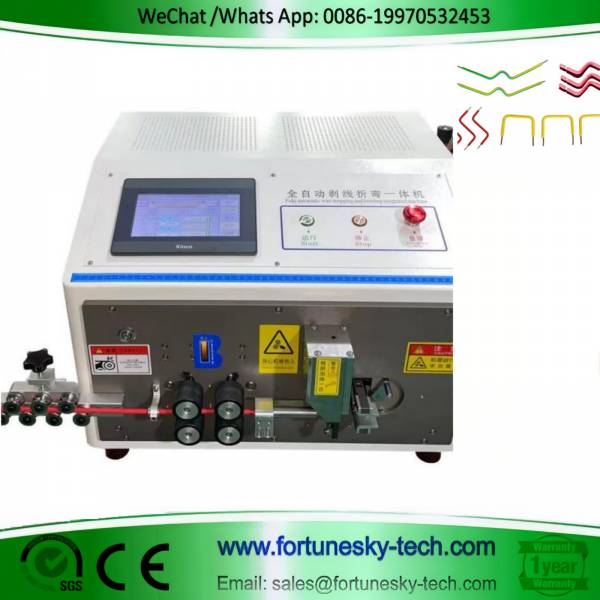

Introducing the Cutting-Edge JT-ZWJ16 Cable Processing Machine

This automatic wire stripping angle bending machine is a powerhouse for cable processing, featuring the latest technology for efficiency and user-friendliness. Here's a breakdown of its key features:

Intelligent Control: The 32-bit control system with a user-friendly touchscreen (available in Chinese and English) makes operation a breeze. Store up to 99 sets of settings for quick retrieval and repeat jobs with ease.

Multi-function Capability: This machine is perfect for various applications, including new energy lines, power distribution boxes, and working with BV.BVR and PVC cables. It performs cutting, stripping, and bending with precision.

Flexible Bending: The two-way bending function allows for precise bends from 30 to 90 degrees, both clockwise and counter-clockwise. It can even perform positive and negative bends simultaneously on the same line.

Detailed Specifications:

Model Number: JT-ZWJ16

Dimensions: 530mm x 370mm x 420mm

Weight: 45kg

Display: Touch Screen

Power Supply: AC175V-250V, 50/60Hz

Power Consumption: 130W-200W

Cutting Length: 0.1mm - 99999.9mm

Stripping Length (Head Stripping): 0.1mm - 100mm

Number of Bends: 13

Bending Length (Last Bend): 30mm

Bending Direction: Clockwise, Counter-clockwise (Adjustable)

Bending Angles: 30°, 45°, 60°, 90°

Minimum Bending Distance: 30mm

Cutting Core Diameter: 0.1mm - 16mm

Cutting Tolerance: 0.002 x L mm (L = Cutting Length)

Catheter Diameter Range: 1.5mm - 10mm

Tool Material: Imported High-Speed Steel

Drive Mode: Four-Wheel Drive

Bending Speed: 400-1000 strips per hour
